Elmers HaulMaster 1300N

Specifications

Model	HaulMaster 1300N	Category Name	Agriculture	Year	2026
Sale Type	New	Manufacturer	Elmers	Width	12’ 2”
CAT 4 Hitch	Standard	Tank Length	22’ 8”	Tongue Weight	4,000 lbs
Overall Length	32’ 3”	Auger Max Reach	9’	Unloading Auger	22”
Auger Max Height	14’ 9”	Horizontal Auger	22”	Transport Height	12’ 2”
Hydraulic Remotes	4	IF 1250/50R32 CFO	Standard	Loading Side Height	11'
Required Tractor HP (KW)	250 (190)	Empty Weight W/ Large Tracks	30,800 lbs	Empty Weight W/ 36" Transfer Tracks	28,900 lbs
Empty Weight W/ Steerable Inline Tandem	26,700 lbs	Ground Clearance (Standard Undercarriage)	1’ 6”	Empty Weight W/ Row Crop Tandem (520 Tires)	25,200 lbs
Empty Weight W/ Tires & Wheels (1250 Tires)	22,400 lbs	Price	Contact for price CAD

Description

Haulmaster 1300N

Your preferred HaulMaster grain cart size will depend on countless variables that include truck capacity, harvester capacity, surge capacity and distance to elevator or bin yard to name a few of the variables that should go into making that decision.

Haulmaster Grain Cart

Make the most of your harvesting window

Spend more time on the field with the HaulMaster grain cart that keeps you going in the toughest conditions.

INTRODUCING

UNMATCHED CAPACITY & STABILITY

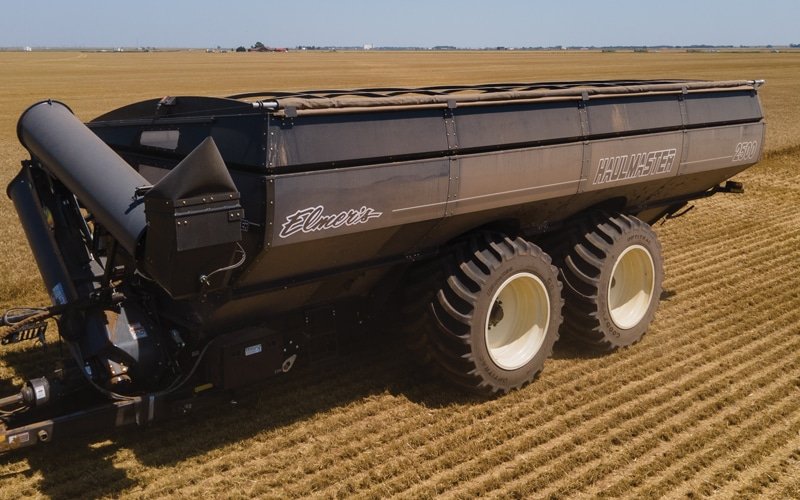

Industry's largest inline tandem

With the largest inline tandem undercarriage in the industry, the HaulMaster 2500 conquers even the most challenging fields with minimal soil disturbance. The large-diameter tires offer lower rolling resistance in hard, dry conditions, as well as flotation when conditions get wet and the harvest needs to keep moving.

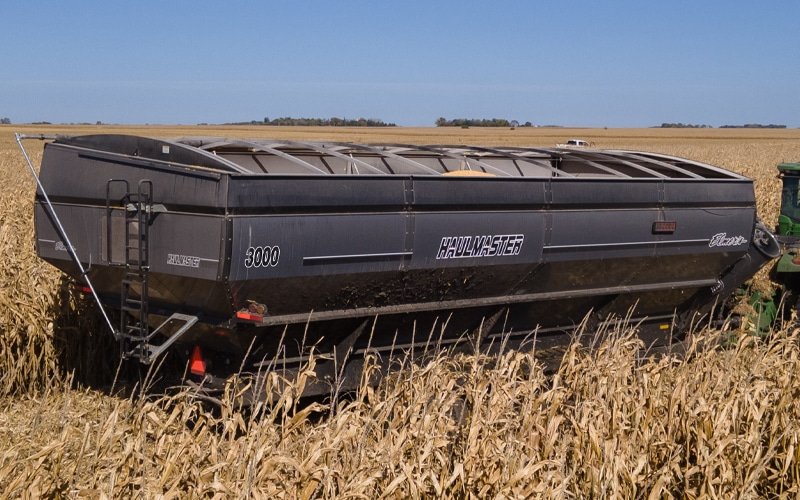

Industry's Largest Grain Cart

Don’t wait around for trucks or let your combines idle in the field – with a massive 3000-bushel capacity, the HaulMaster 3000 maximizes your harvest window. It can hold 6 full high-capacity combine unloads to keep you running. Less travel across the field to unload also improves soil conditions.

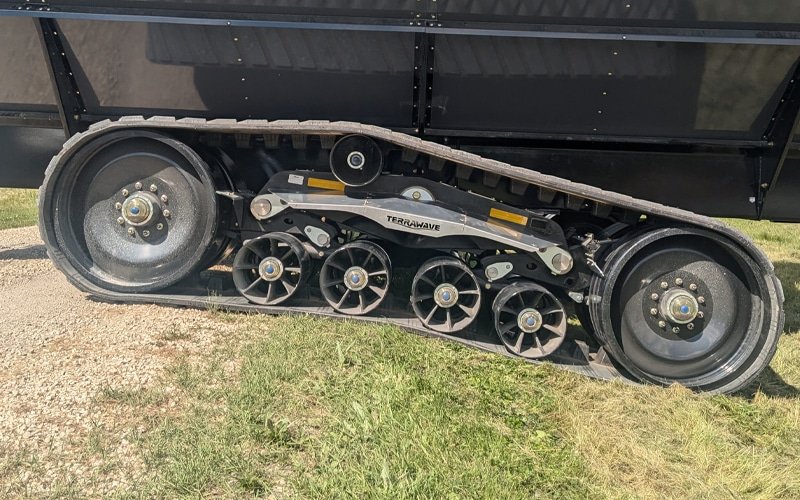

All-NEW TERRAWAVE TRACKS

Available on HaulMaster 2500- & 3000-bushel grain carts, our exclusive TerraWave Tracks offer maximum uptime with grease-free bushings and oil bath hubs. The all-new design minimises soil compaction, while superior pivoting ability enhances ground contouring.

Simplified controls & data Management

Get back to your harvester faster

HaulMaster CONNECT and PRO provide you with a seamless and intuitive scale and hydraulic control system. CONNECT provides you with live weights and detailed load tracking, while PRO removes the need for hydraulic controls and implements a joystick control and unlocks automated features like our double tap to fold/unfold and auto gate close.

MORE CONTROL OF THE GRAIN CART AND lESS STRAIN DURING OPERATION

Make your HaulMaster grain cart operator comfortable during harvest season. Choosing a right hand dual auger improves the operator's unload experience by unloading to the right hand side where all the in-cab controls are located.

INCREASE YOUR grain cart AUGER OUTPUT

The HaulMaster PowerMaster Direct Drive Gearbox eliminates the need for belts and chains on the grain cart, decreasing the cart's height, while harnessing your horsepower more effectively and increasing your unloading capacity.

INDUSTRY-LEADING GRAIN CART TECHNOLOGY

Connect

HaulMaster CONNECT is a simplified, grain cart-focused, hub and brain of all electronic features. A controller on the cart connects the scales, GPS and optional HaulMaster PRO to the operator using the supplied tablet. HaulMaster CONNECT provides you with live weights, GPS, and detailed load tracking so you know exactly how much is coming off the field and going into your bins.
Settings and data stored on the controller, reducing liability in the event of tablet failure
Direct connection to scales for accurate reading and scale diagnostics
Detailed load tracking (crop, field, truck, bin)
No battery required
GPS load taggings
Multiple tablet connections (cart, truck, combine)
Export load data to email
Includes tablet, window mount and charger for a turnkey solution

Pro

HaulMaster PRO was developed with the vision of allowing the operator to maximize their unload experience without over complicating the design. The more efficient the operator is at unloading, the quicker they can get to the next combine.
Industry-leading adaptive auger fold/unfold speed
Double tap to fold/unfold auger
Joystick with proportional spout control
4-Way Spout
Auto spout return to center on auger fold
Auto gate close at 3MPH, reducing liability of leaving gate open
Auto gate close at predefined truck weight
Simple connection with 1 hydraulic input and 7-pin plug power
Includes Haulmaster CONNECT

LITERAURE

Name	Link
Brochure	Download
