MacDon FD2 PLUS FLEXDRAPER®

Name: MacDon FD2 PLUS FLEXDRAPER®
Brand: MacDon
Availability: OutOfStock

Get Financed

Overview

More Flexibility!

MacDon didn't set out to build just another flexing cutterbar draper, we took our legendary FlexDraper® platform and pushed ground-following performance to the next level. With over 2 inches of extra flex at the cutterbar, it hugs the ground tighter, reaching deeper into low spots and scooping up every last bit of available crop. Unlike other flex headers, the FD2 PLUS flexes without compromise, maintaining MacDon's close reel-to-cutterbar relationship for smooth, consistent feeding. The featherlight instant float response keeps the header moving effortlessly with the land, cutting closer, capturing more crop, and helping you GET MORE from every harvest.

WHO'S THE FD2 PLUS FOR?

The FD2 PLUS is built for extremes and customers who feel they need a flexing cutterbar for their conditions.

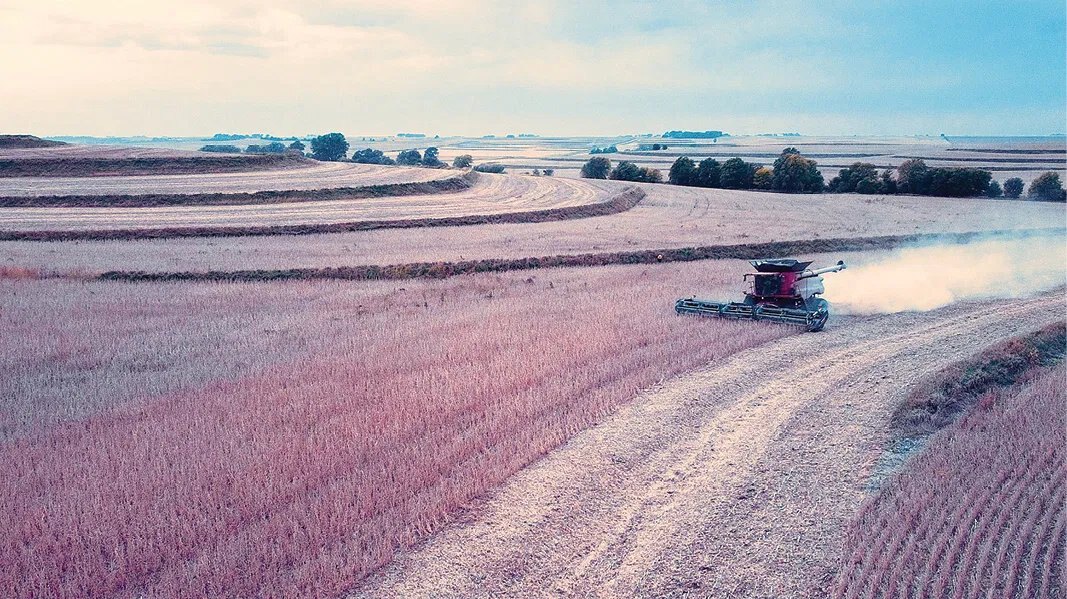

It’s designed for producers who grow low-podding crops in highly uneven or hilly fields or those who need to navigate challenging terraces and waterways. In these tough conditions, the FD2 PLUS is MacDon’s flexiest solution yet.

Its advanced flexing technology ensures even stubble height, prevents dirt buildup, and maintains optimal reel-to-cutterbar positioning so that every last bit of crop gets off the field and into the combine.

Specifications

Model

FD2 PLUS FLEXDRAPER®

Category Name

Agriculture

Year

2026

Sale Type

New

Manufacturer

MacDon

Quantity

0

Manufacturer Qty

0

features

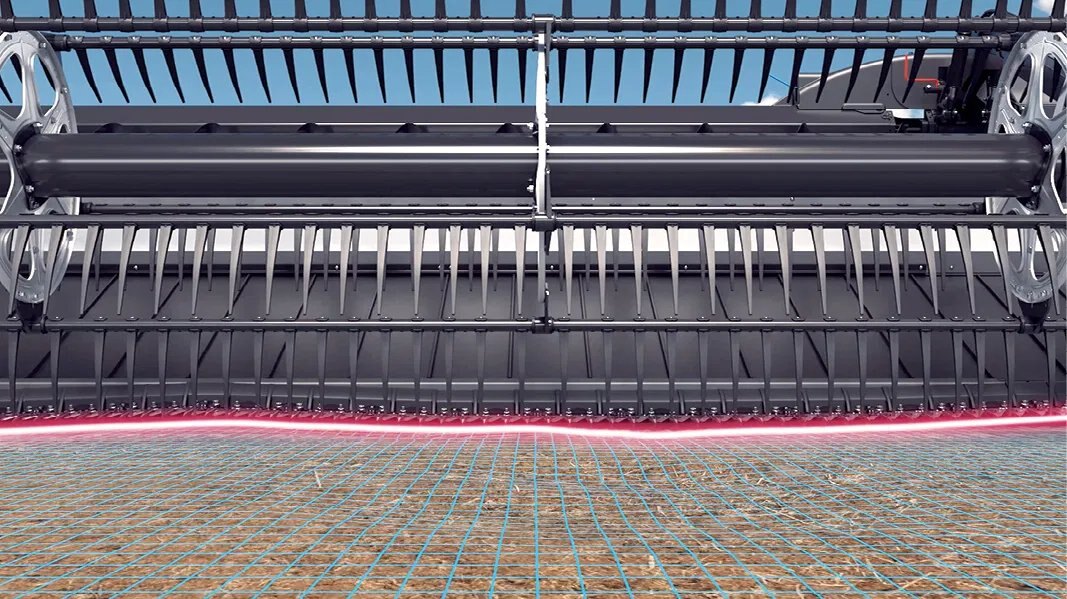

Close Reel-to-Cutterbar Relationship with a Flexing Cutterbar

The FD2 PLUS features a full-length flex cutterbar for exceptional ground tracking while maintaining the majority of the reel-to-cutterbar relationship.

This close alignment is critical for capturing low-podding crops, allowing the reel fingers to lift and guide the cut crop onto the drapers.

In competitive flex cutterbars, excessive flexing may cut the crop, but a wide gap to the tips of the reel fingers could put it out of reach. MacDon’s tight reel-to-cutterbar relationship ensures that cut crop reaches the drapers and flows smoothly into the combine.

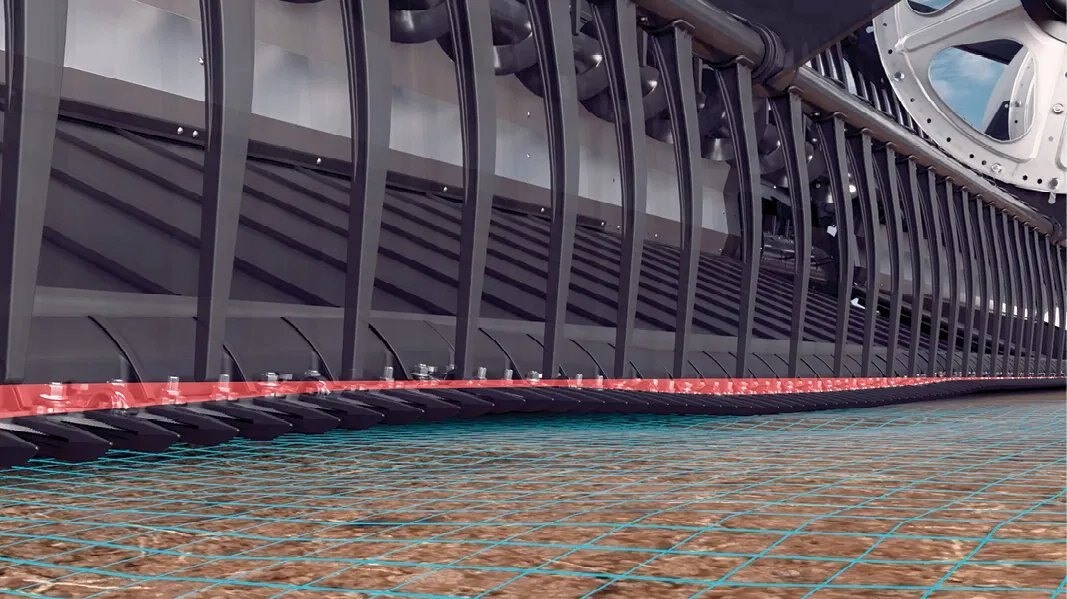

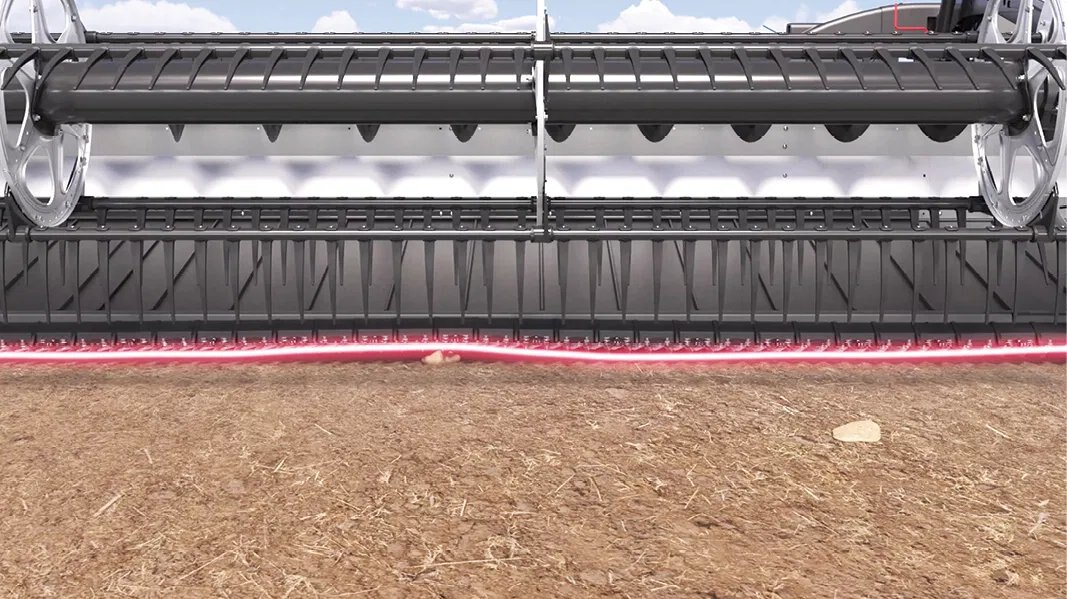

An Even Closer Shave of the Ground - Without Compromise

Just cutting the crop isn’t enough—if the crop is not in the combine, it’s not making you money. The challenge with flexible cutterbars is that too much flex can compromise the reel-to-cutterbar relationship, making it hard to capture low-podding crops.

Adding a little over 2 inches of extra flex at the cutterbar, the FD2 PLUS follows the ground even better in extreme conditions, reaching more crop without sacrificing reel-to-cutterbar positioning.*

The low-profile cutterbar and close reel positioning ensure the cut crop is lifted off the ground and smoothly transitioned onto the drapers and into the combine.

*2” (52 mm)

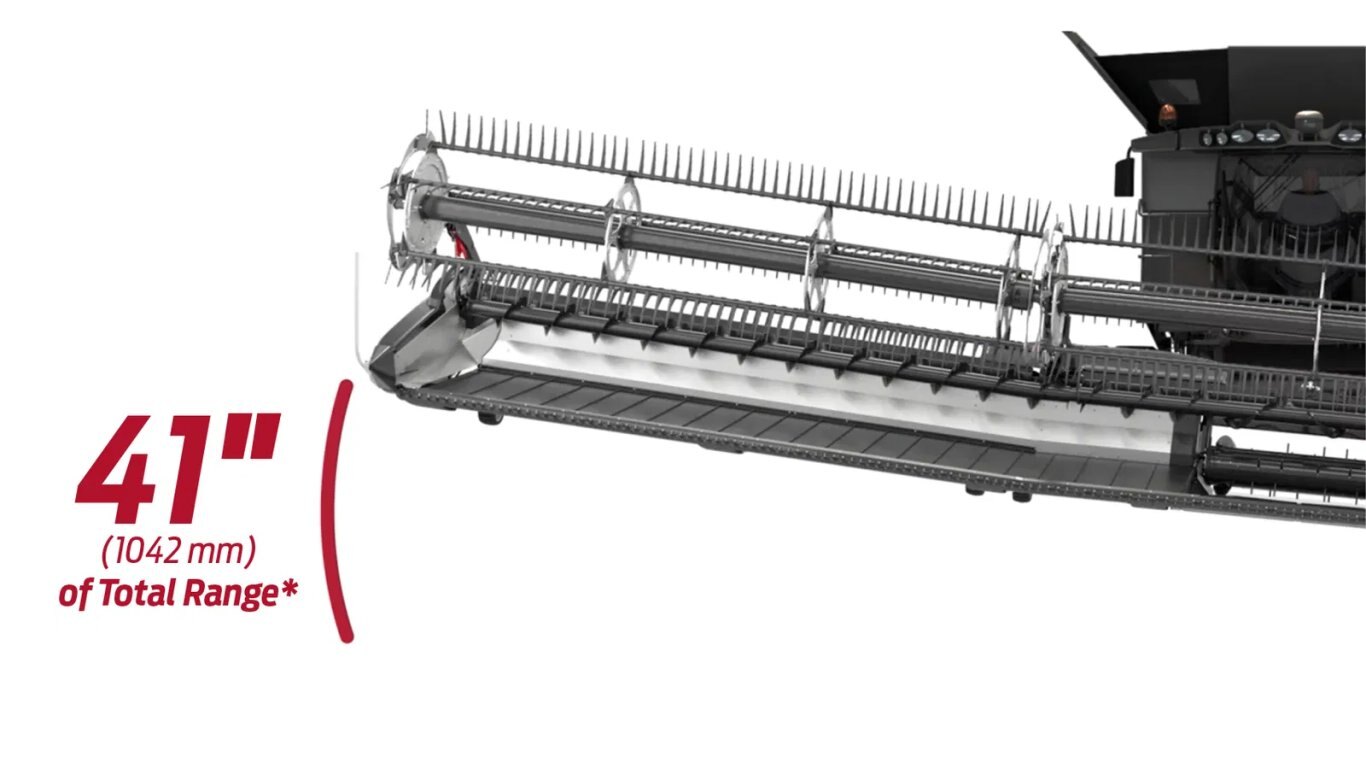

Serious Flex Range

A 50-foot FD2 FlexDraper features 17 inches of wing flex, plus an additional 24 inches of lateral tilt, providing a total flex range of up to 41 inches on either end, independent of the combine. The FD2 PLUS builds on this by adding a full-length flexing cutterbar.

With over 2 inches of extra flex at the cutterbar, the FD2 PLUS provides outstanding ground tracking performance, reacting instantly to irregular terrain capture every last bit of crop in the field.

*When equipped with an FD250 PLUS

WHAT IT IS/DOES

Take FlexDraper® Performance Over the Top! The ContourMax™ Performance Option is a simple hydraulic system that uses strategically placed wheels under the FlexDraper. This design takes full advantage of the FlexDraper’s Flex/Float system mirroring the contours of the field while cutting up to 457 mm (18") from the ground surface. Using ContourMax sets you up for next year’s seeding with a consistent even stubble height

FEATURES/BENEFITS

Takes full advantage of the FlexDraper’s Flex/Float system mirroring the contours of the field while cutting up to 457mm (18") from the ground surface.
Stubble heights between 25.4mm (1") and 457 mm (18") from the ground surface*
Adjustable in-cab and on-the-go
* True range varies slightly depending on combine brand. Hydraulic line kits needed for headers WITHOUT factory installed plumbing

advantages

Close Reel-to-Cutterbar Relationship with a Flexing Cutterbar
Flex & Float PLUS a Flexing Cutterbar
High-Capacity Multi-Crop Solution
Ability to Run a Wider Header in Extremely Irregular Field Conditions

fd2 plus flexdraper® specifications

Size*	9.1 m (30’)	10.6 m (35’)	12.2 m (40’)	12.5 m (41’)	13.7 m (45’)	15.2 m (50’)
Weight** Single Knife Drive without FM200	2,880 kg (6,347 lbs)	-	-	-	-	-
Weight** Double Knife Drive without FM200	-	3,174 kg (6,996 lbs)	-	3,559 kg (7,845 lbs)	-	-
Weight ** Double Knife Drive with Triple Reel without FM200	-	-	3,477 kg (7,664 lbs)	-	3,734 kg (8,230 lbs)	3,979 kg (8,769 lbs)
Knife: Type / Drive / Speed	Single or Double knife / Hydraulic, MacDon design enclosed oil bath knife drive box(es) / 1200-1400/1500 spm, varies depending on header size

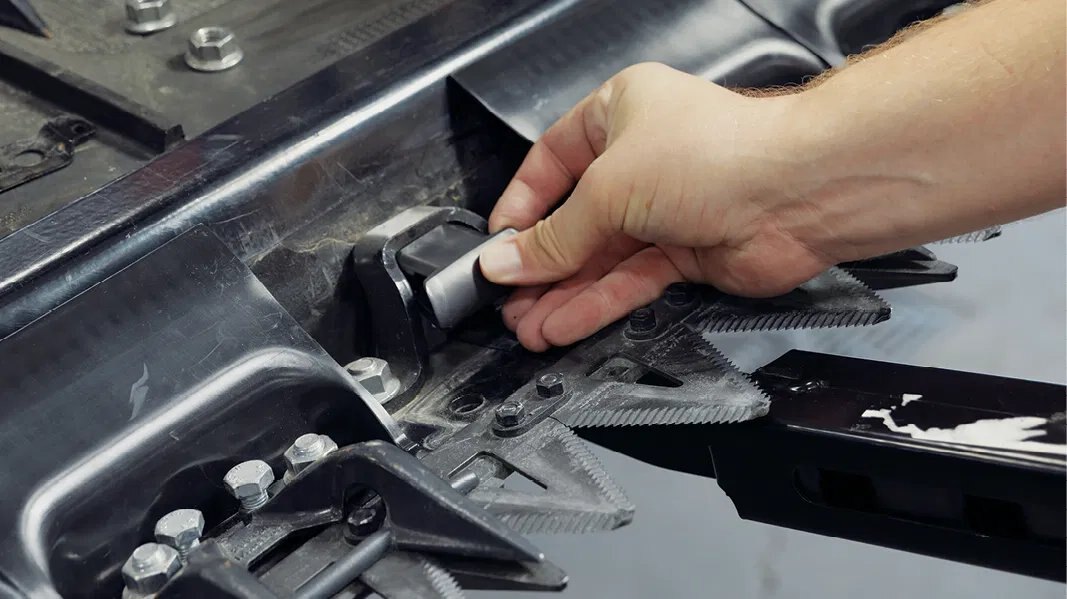

Guard Types Available	ClearCut™ Pointed Guards - Forged and Double Heat Treated (DHT) with Forged, Single Bolt Adjustment Hold-Down; ClearCut™ PlugFree™ Short Guards - Forged and Double Heat Treated (DHT) with Forged, Dual Bolt Adjustment Hold-Down
Reel: Type / Drive / Speed / Fingers	Pick-up reel, five bats, two-piece (double) or three-piece (triple), flip-over design, cam-leading finger control / Hydraulic / 0 to 67 rpm (varies depending on combine model) / 290 mm (11.4”) length, wear-resistant HD plastic, 102 mm (4”) spacing
Reel Segments	Double	Double	Triple	Double	Triple	Triple
Conveyor: Type / Drive / Speed	1270 mm (50”) deep, reversible, rubber skim-coated drapers, double V-guide with tracking, integral seal on leading edge / 0 to 209 m/min (0 to 687 ft/min)
Standard Features	Fits most current model combines, hydraulic fore-aft reel positioner, hydraulic header tilt, in-cab side draper speed control, auto-header height with header angle and ground pressure indicators, full width cutterbar poly wear plates and six poly skid shoes with steel support structure
Field-Installed Options	EasyMove™ Transport System, ContourMax™ Contour Wheels, Upper Cross Auger, VertiBlade™ Vertical Knife, stabilizer wheels, lateral tilt automatic header height control
*Product size availability varies by market.
**Listed weights are for basic header configuration. Weights may vary with additional performance options. See your MacDon dealer for details.

fd2 plus wing flex range

Standard (Factory) Range	Increased Range*
FD230 PLUS Double Reel	165 mm (6.5") up & 130 mm (5") down	165 mm (6.5") up & 165 mm [6.5") down
FD235 PLUS Double Reel	205 mm (8") up & 130 mm (5") down	205 mm (8") up & 205 mm (8") down
FD241 PLUS Double Reel	205 mm (8") up & 130 mm (5") down	205 mm (8") up & 205 mm (8") down
FD240 PLUS Triple Reel	205 mm (8") up & 205 mm (8") down
FD245 PLUS Triple Reel	216 mm (8.5") up & 216 mm (8.5") down
FD250 PLUS Triple Reel	216 mm (8.5") up & 216 mm (8.5") down
*The flex range can be increased by removing the flex limiter, however a greater reel to cutterbar clearance is required. This is a customer configuration; instructions in Op Manual

fd2 plus total flex range (includes lateral float)*

	Total Flex Range
FD230 PLUS Double Reel	696.98 mm (27.44")
FD235 PLUS Double Reel	833.88 mm (32.83")
FD240 PLUS Triple Reel	894.84 mm (35.23")
FD241 PLUS Double Reel	907.54 mm (35.73")
FD245 PLUS Triple Reel	981.20 mm (38.63")
FD250 PLUS Triple Reel	1042.16 mm (41.03")
*Independent of combine

fm200 float module specifications

Center Draper	Feed Auger
Weight	1083 – 1171 kg (2387 – 2581 lb), varies by combine configuration
Size	2000 mm (78.7”) width	1630 mm (64.1”) width
Type	Hydraulic drive (reversible), self tracking rubber coated polyester fabric feed draper with rubber slats	Mechanical drive (reversible), removable retracting fingers with bolt on flighting
Speed	107-122 m/min (350-400 ft/min), varies with combine brand	191 - 195 rpm, varies with combine brand
Header Floatation: Type/Vertical Range/Lateral Range (Tilt)	2 pairs of coil springs, independent adjustment, transport lock-out / 178 mm (7”) / 4.8 degrees
